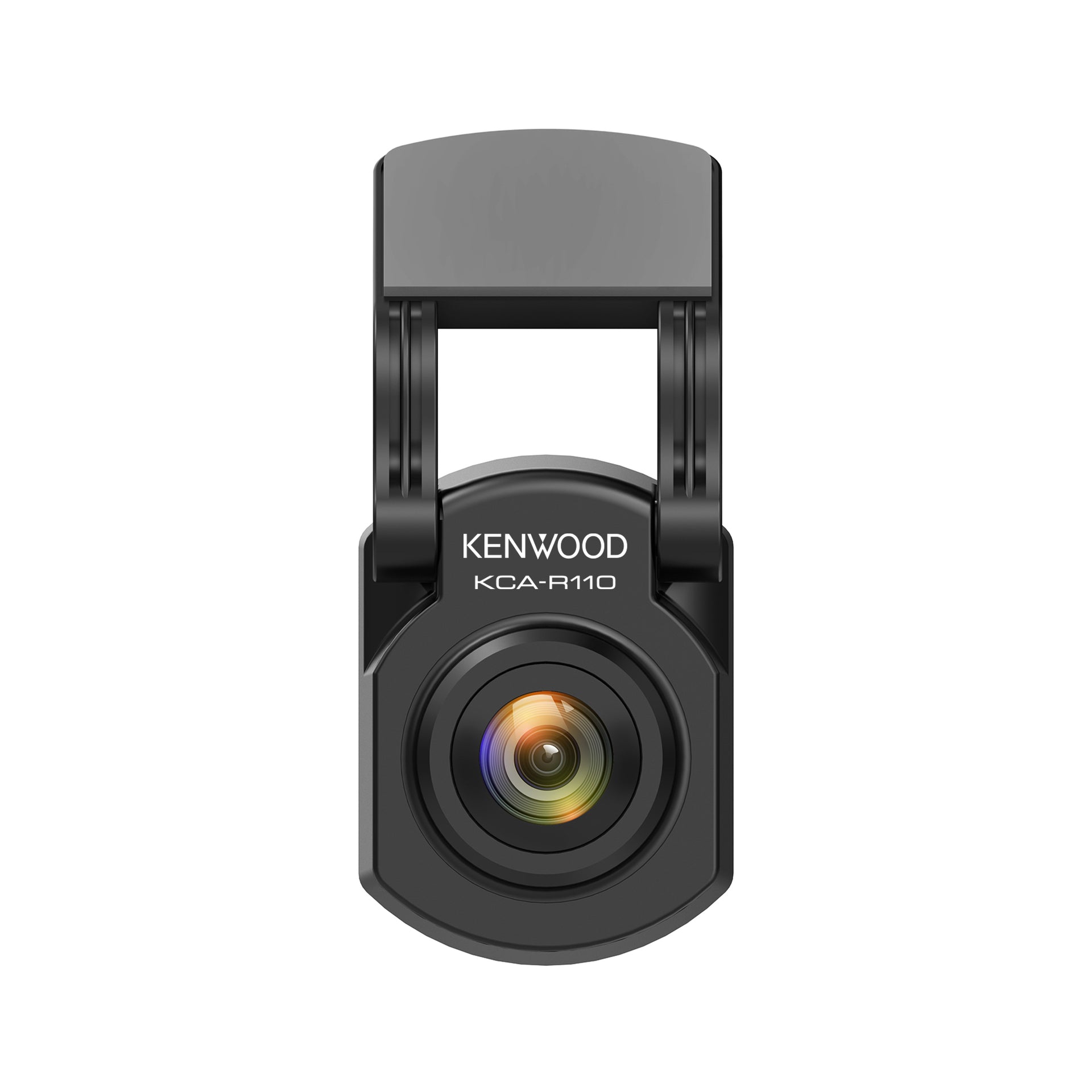

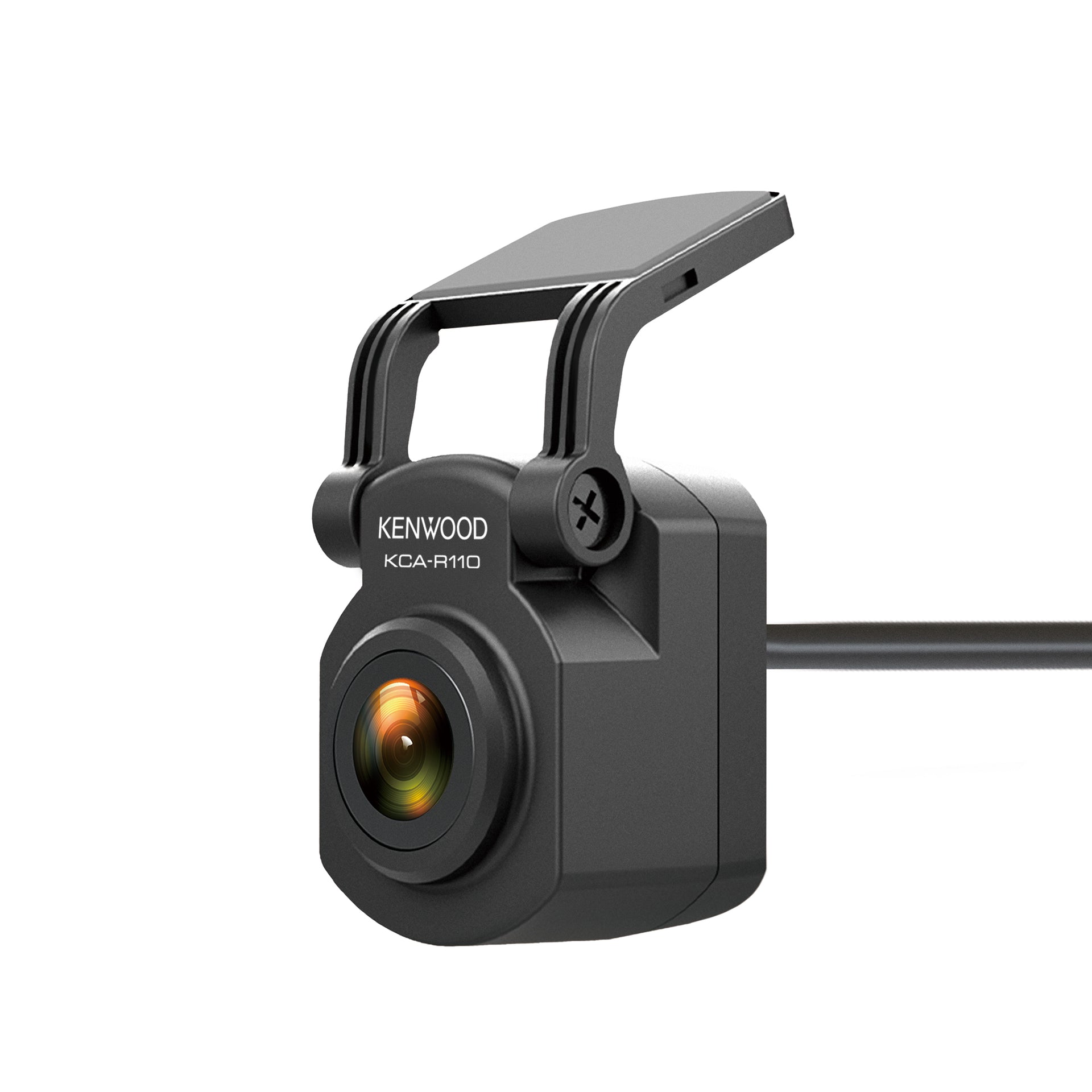

KCA-R110 OPTIONAL REAR VIEW CAMERA

$149.00
$149.00
Shipping calculated at checkout.

Description

LIVE CONNECTED.  DRIVE CONNECTED.

OPTIONAL REAR VIEW CAMERA FOR DRV-A310W AND DRV-A510W

Optional Rear View Recording

Connect KCA-R110 to connectable DRV-A310W to record in front and behind of your vehicle, all at the same time. KCA-R110 includes a 26’ (8m) cable that connects to the front dash cam, allowing it to easily be mounted to the rear windshield or outside of the vehicle where you would like to record.

Key Features:

  • 2.0M Megapixel Recording
  • HDR
  • IP67

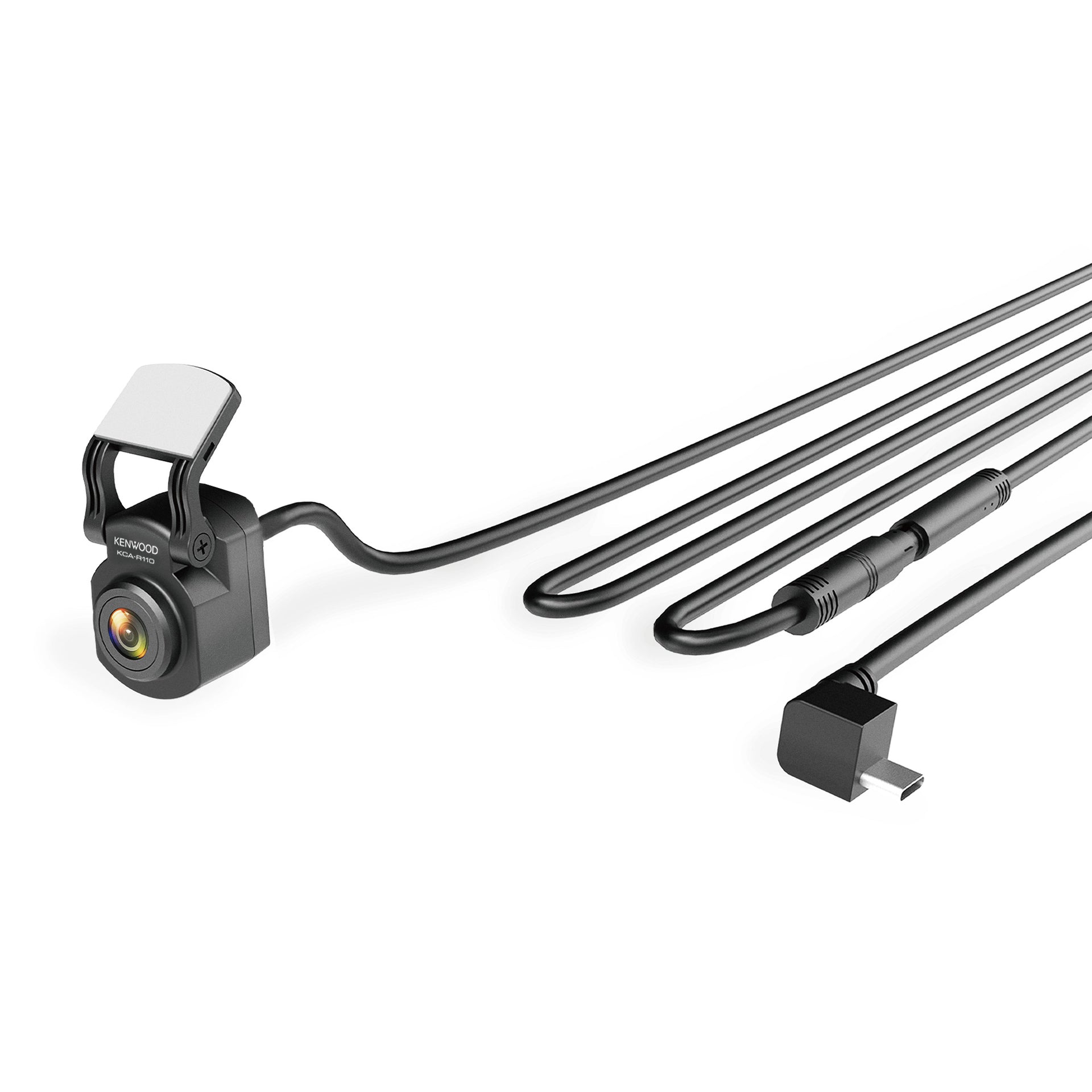

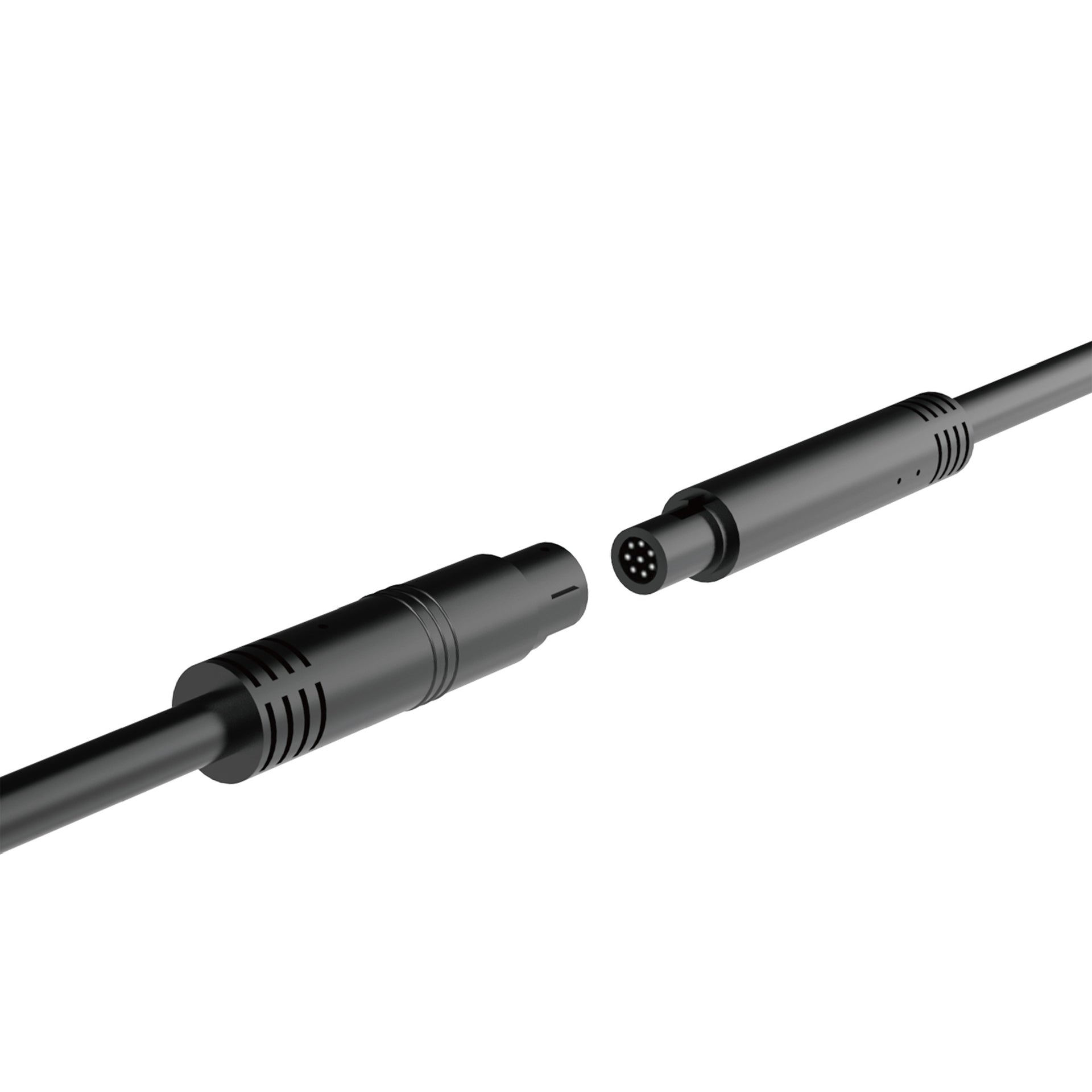

26' (8M) Rear Camera Cable

26' (8m) power & video cable enable you to install the rear camera inside or outside of your car, truck, or RV.


IP67 Waterproof & Dustproof

The Rear Camera carry an IP67, meaning that camera can be submerged in up to 3.3 feet of water for 30 minutes. The Camera is also fully sealed and protected against dust entry.

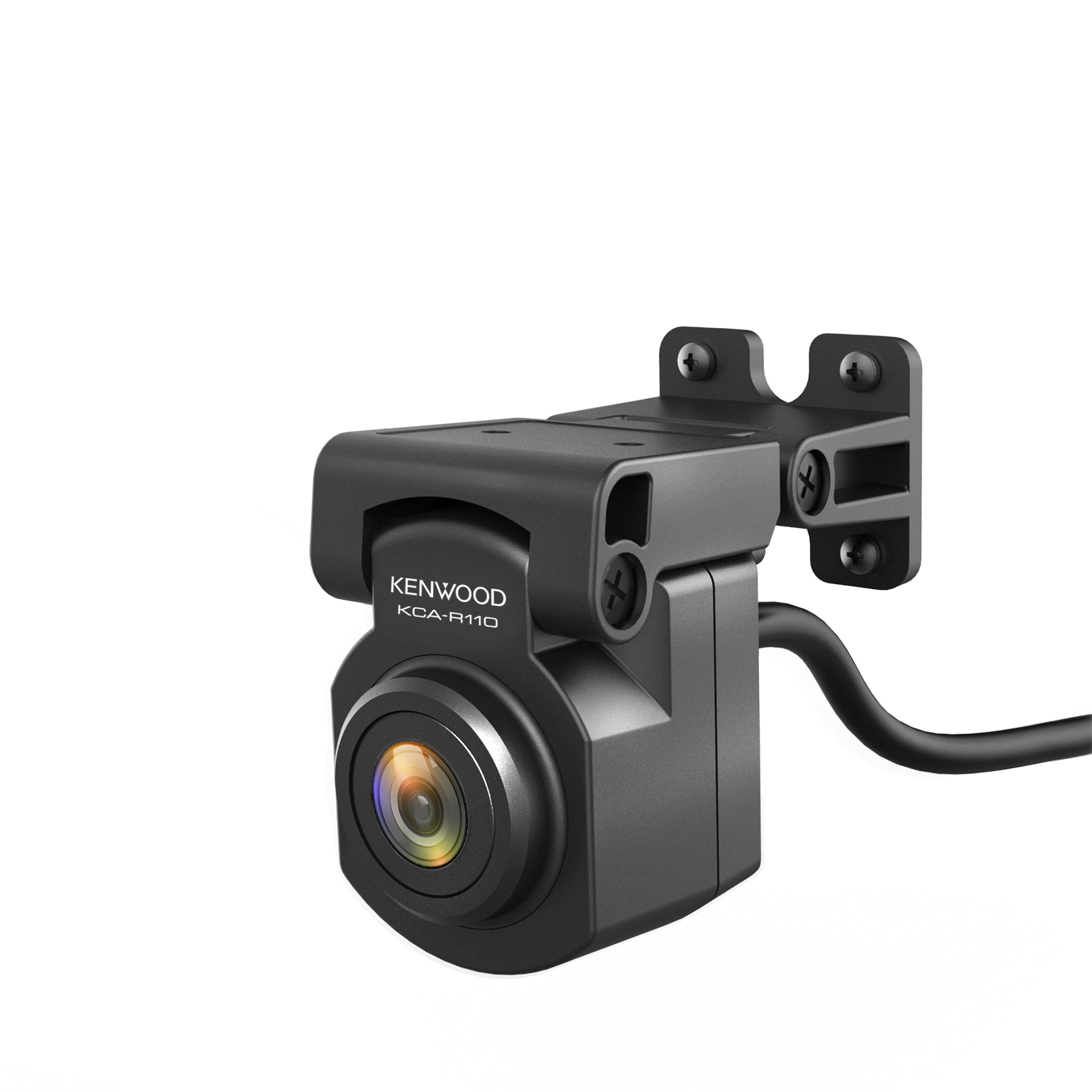

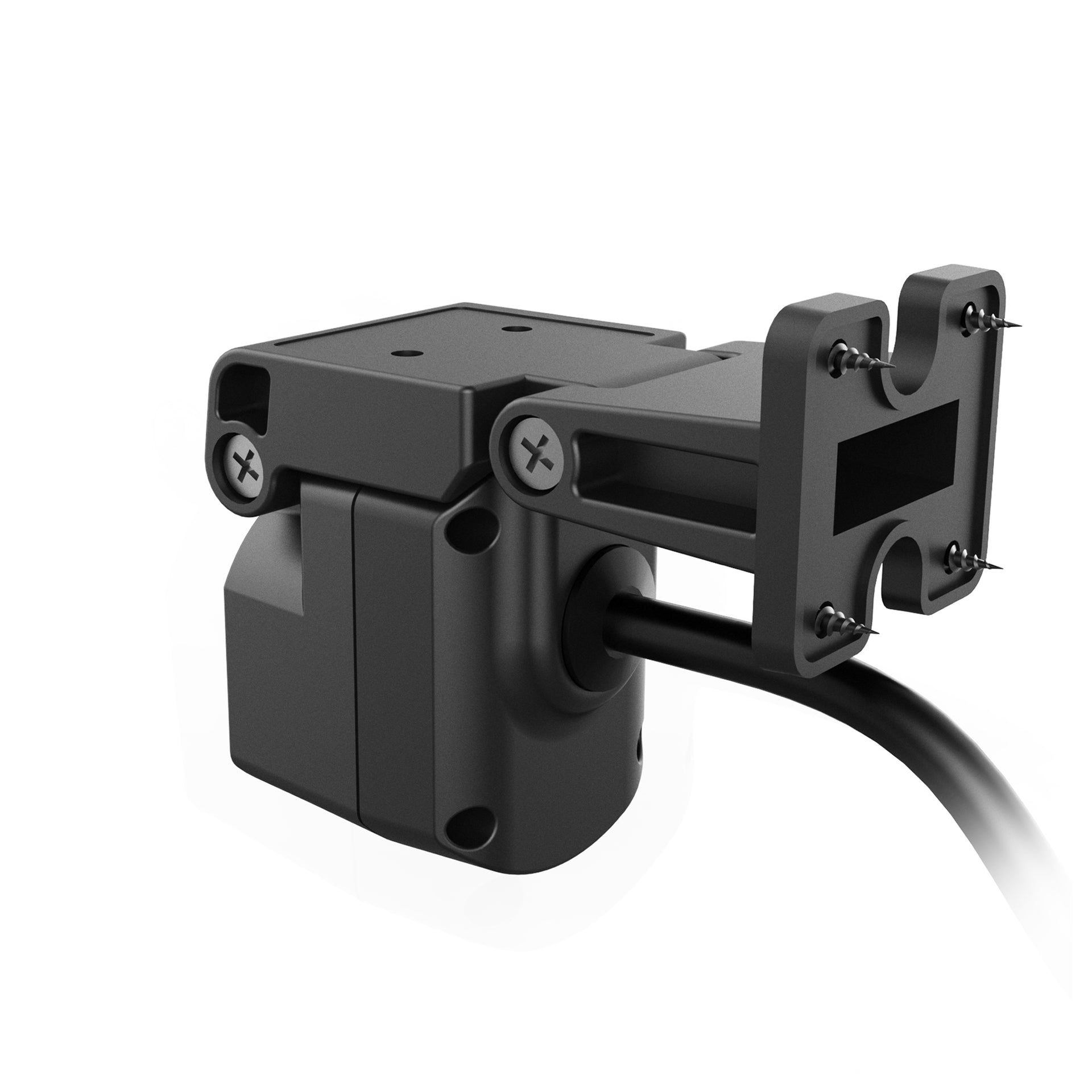

2 Rear Camera Brackets Included for Various Installation

Adhesive & Screw Brackets

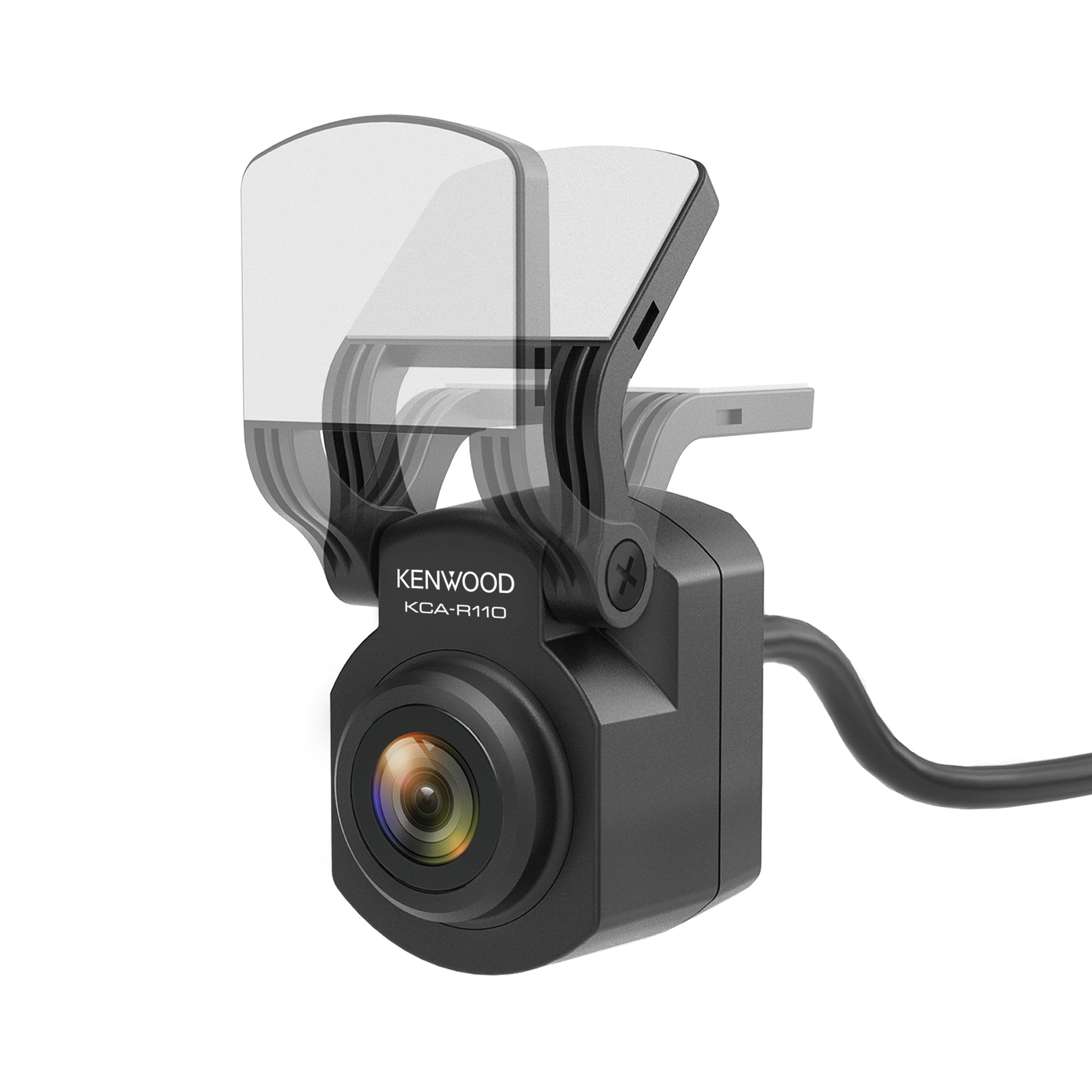

Adjustable Mounting Holder (Rear Camera)

Adjustable Rear Camera mounting holder enables to change
the viewing position changes to various angles.



Accessories Included

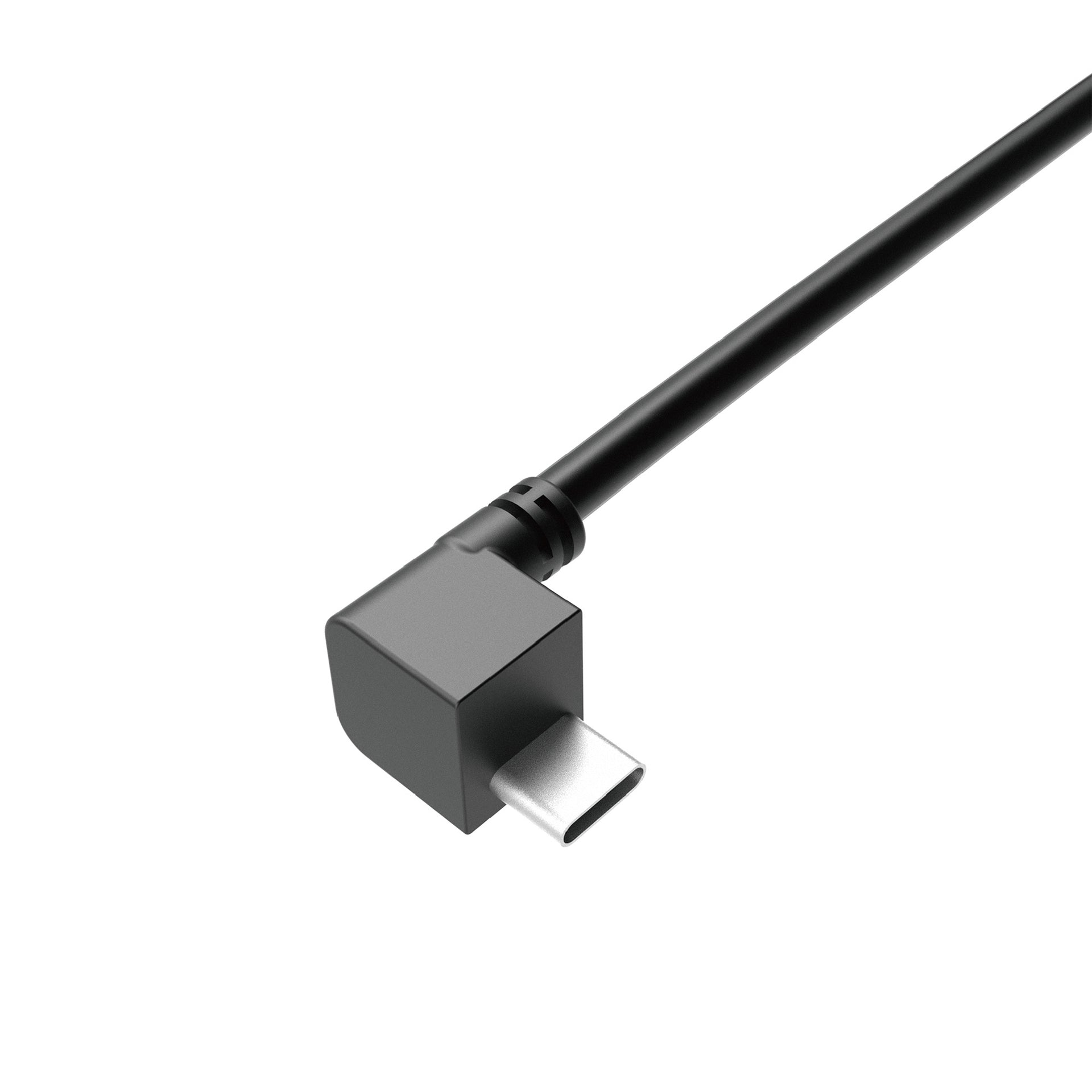

  • DC Cable - 18 ft / 5 m
  • Bracket - Vertical Bracket and Screws (For Out of Car)
  • Instruction Manual
  • Warranty Card

Technical Specs

Model Name



KCA-R110

Hard specification 　 　 　 　 　 　 　 　 　 　 　 　 　

Operating voltage

DC 5V

Current Consumption

~300mA

Image sensor

1/2.9" Galaxy Core / GC2093

Valid Pixel

2M Pixels
(1928x1108)

Number of Pixel

2M Pixels
(1920x1080)

Angles of view

Horizontal : 110.8°
Vertical : 59.6°
Diagonal : 131.6°

Image reversal

Yes (Invert/Mirror)

Lens

F2.0

Operating temperature

-10℃ to +60℃

Noise Protection

Yes

Waterproof

IP67

Recording Specification

Recording resolution

1920 x 1080 Full HD

Frame rate

30FPS

HDR

Yes

WDR

-

Video format

H.264 /  MP4

Size

Dimensions WxHxD
(Bracket attached)

with bracket: 1-1/16 x 2 x 1-1/4"
(27.6mm x 31.7mm x 50.0mm)

Weight (Main unit)

0.66 lbs (300g)

Bundled Accessory

DC Cable

18ft (5.5m)

Bracket

Vertical Bracket and screws
(For out of car)

Spare 3M Adhesive Pad

Yes/2pcs

Manual /Warranty card

Instruction Manual
Warranty Card



General Information

    • Manufacturer's 1 year warranty
    • Not suitable for children under the age of 3 years due to small parts and entanglement hazard

    Online Instruction Manual Rear Camera

    Product Warranty Registration
